Custom Popup Modal (GEOGLOWS Forecast)

This tutorial is an alternative ending to GEOGLOWS Demo. Instead of adding a GeoGLOWS forecast plot as a permanent grid item on the dashboard (which is what GEOGLOWS Demo (Part 2) does), you will surface the forecast as a floating popup modal that opens only when the user clicks a river segment on the map.

Floating popup modals are useful when you want contextual information to appear on demand without taking up permanent dashboard real estate.

What you will build

• A Custom Popup Modal on the China Flowlines layer that opens whenever a user clicks a river segment.

• A GeoGLOWS Forecast Plot inside the popup, parameterized by the clicked feature’s comid via the ${feature.<key>} template syntax.

Prerequisites

• Complete GEOGLOWS Demo first. You should have a dashboard named GEOGLOWS Demo that contains a Map of Chinese GEOGLOWS flowlines and a Base Map variable input.

• A local installation of TethysDash — see Installation and Setup.

• The tethysdash_examples plugin package must be installed as a TethysDash dependency. It provides the GeoGLOWS Forecast Plot visualization used in this tutorial.

• Familiarity with the Custom Modal Popup Tab reference page is helpful but not required — every concept the tutorial uses is also explained here.

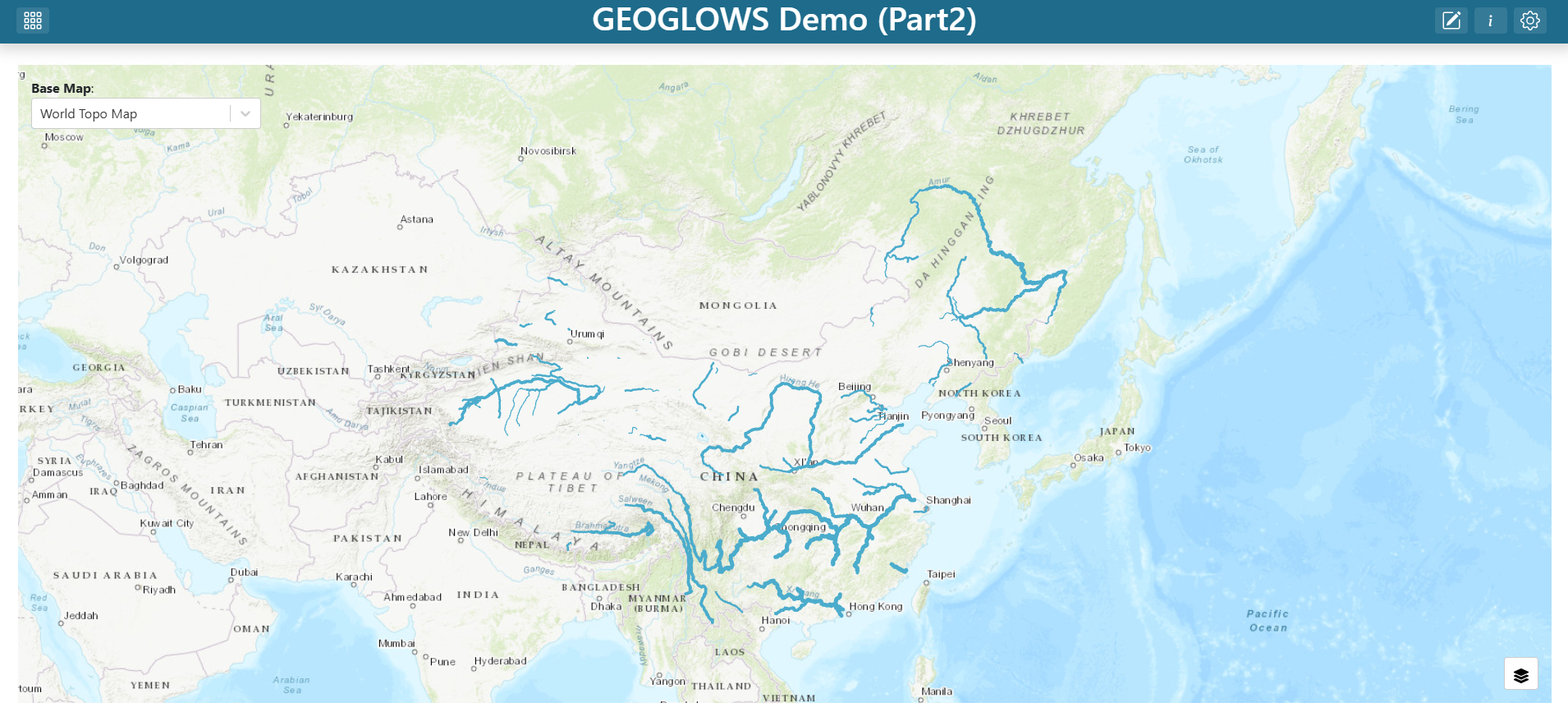

Step 1 — Edit the dashboard

Open your GEOGLOWS Demo dashboard and click the Edit (pencil) icon in the toolbar to enter edit mode.

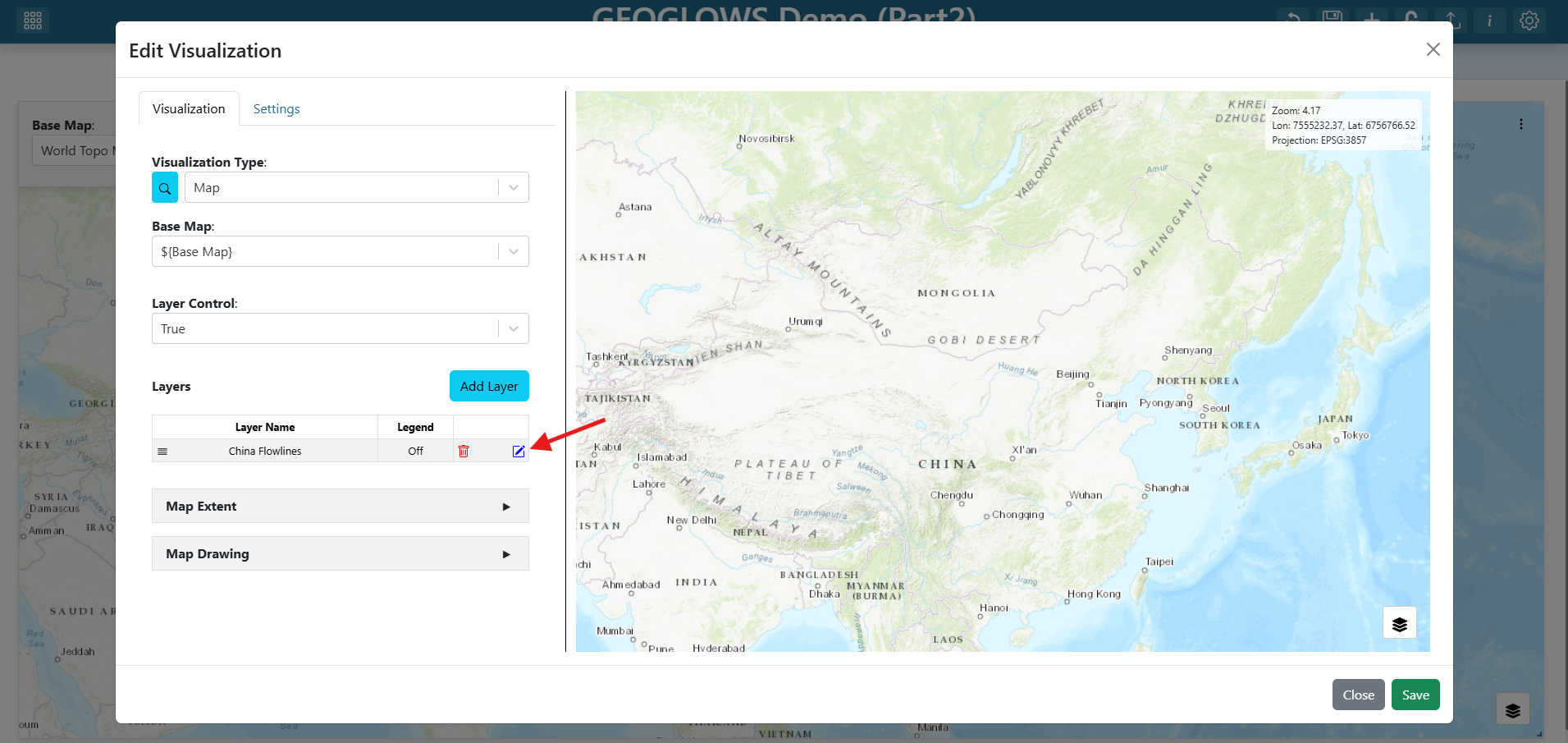

Step 2 — Edit the map layer

1. Find the map grid item, click its three-dot menu, and click Edit.

2. In the map editor’s Layers list, click the China Flowlines layer to open the layer editor.

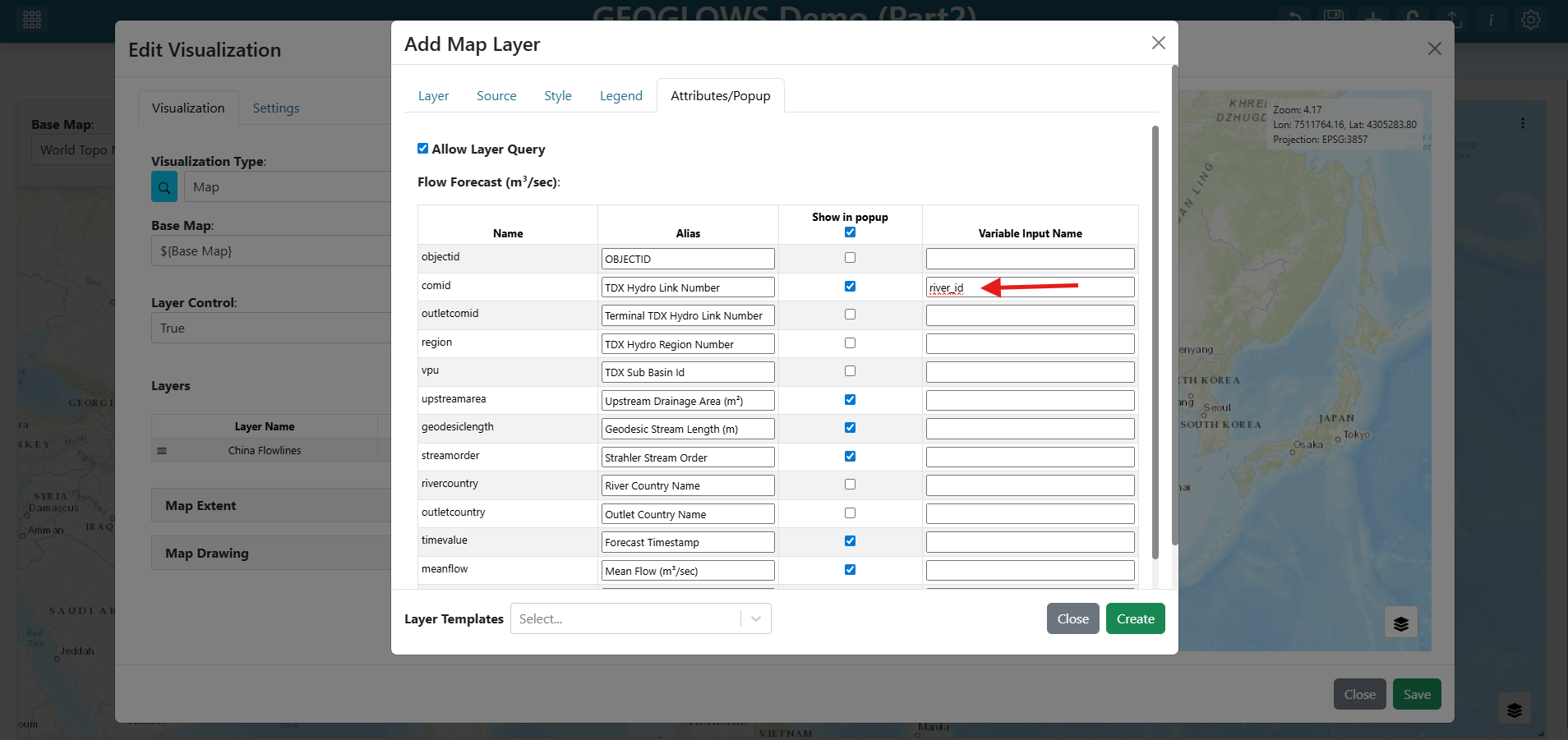

Step 3 — (Optional) Alias the comid attribute

1. Switch to the Attributes/Table Popup tab in the layer editor.

2. Find the comid row.

3. Set its Alias to River ID.

Note

The popup modal references the clicked feature’s attributes directly via ${feature.comid}, so a variable input binding is not required for this approach (unlike GEOGLOWS Demo (Part 2), which uses a ${river_id} variable input). Aliasing is purely cosmetic here — it just makes the field show up as River ID in the default attribute table popup that appears alongside the modal.

See Attributes/Table Popup Tab for the full reference on attribute aliases.

Step 4 — Inspect the GeoGLOWS Forecast Plot plugin

The visualization you are about to add is provided by a TethysDash visualization plugin — an external Python package that subclasses TethysDashPlugin and is auto-discovered when installed alongside TethysDash. The Visualization Plugins page is the full reference for the plugin API: every supported type, every args field type, send_update, packaging, and discovery.

Here is the full source for the GeoGLOWS Forecast Plot plugin from the tethysdash_examples repository:

from tethysapp.tethysdash.plugin_helpers import TethysDashPlugin
import requests


class GeoGLOWSForecastPlot(TethysDashPlugin):
    name = "geoglows_forecast_plot"
    group = "Tutorials"
    label = "GeoGLOWS Forecast Plot"
    type = "plotly"
    tags = [
        "example",
        "plotly",
        "tutorial",
        "geoglows",
    ]
    description = "A GeoGLOWS forecast plot for the GeoGLOWS tutorial"
    args = {"river_ID": "number"}

    def run(self):
        self.send_update("Loading forecast data from GeoGLOWS API...")
        url = f"https://geoglows.ecmwf.int/api/v2/forecast/{self.river_ID}?format=json"
        response = requests.get(url)
        forecast_data = response.json()

        self.send_update("Processing forecast data...")
        data = [
            {
                "type": "scatter",
                "x": forecast_data["datetime"],
                "y": forecast_data["flow_uncertainty_lower"],
                "name": "Lower Uncertainty",
                "line": {"color": "lightblue"},
            },
            {
                "type": "scatter",
                "x": forecast_data["datetime"],
                "y": forecast_data["flow_uncertainty_upper"],
                "name": "Upper Uncertainty",
                "line": {"color": "lightblue"},
                "fill": "tonexty",
                "fillcolor": "lightblue",
            },
            {
                "type": "scatter",
                "x": forecast_data["datetime"],
                "y": forecast_data["flow_median"],
                "name": "Median Forecast",
                "line": {"color": "darkblue"},
            },
        ]

        layout = {
            "title": f"GeoGLOWS Forecast ({self.river_ID})",
        }

        config = {"displayModeBar": True}

        return {"data": data, "layout": layout, "config": config}

Key things to understand before wiring the plugin into the popup:

Attribute	Value	What it means
name	"geoglows_forecast_plot"	Unique identifier written into the dashboard JSON’s source field
label / group	"GeoGLOWS Forecast Plot" / "Tutorials"	How the plugin appears in the Visualization Type dropdown
type	"plotly"	TethysDash renders run()‘s return value as a Plotly figure
args	{"river_ID": "number"}	Declares a single numeric input; TethysDash auto-renders a form field for it

The run() method fetches the forecast for self.river_ID from the GeoGLOWS REST API, builds three Plotly traces (lower-uncertainty band, upper-uncertainty band, and median forecast), and returns them in the standard Plotly figure shape. The self.send_update(...) calls stream progress messages back to the dashboard over WebSocket while run() is in flight, so the user sees status instead of a silent spinner.

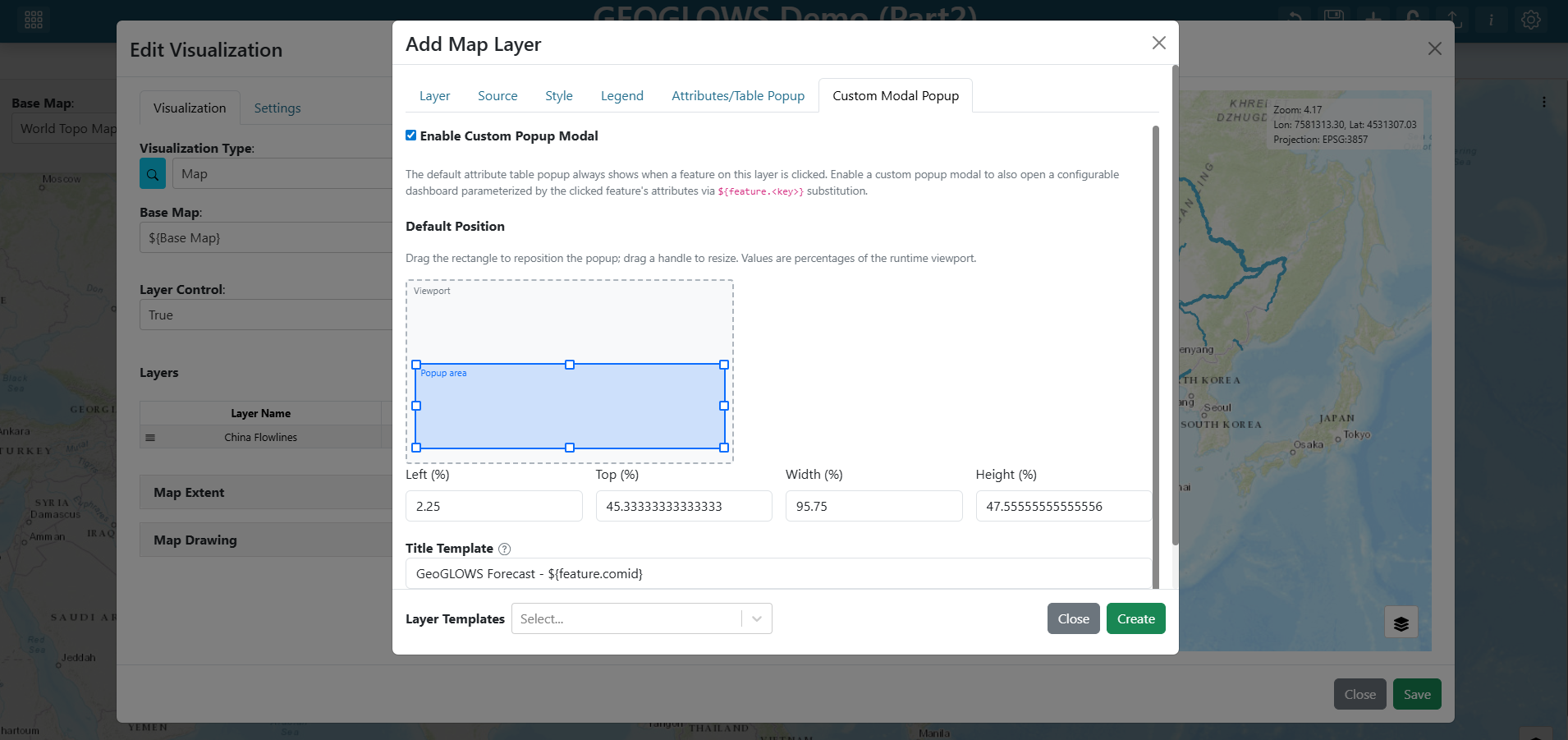

Step 5 — Enable Custom Popup Modal on the layer

1. Switch to the Custom Modal Popup tab in the layer editor.

2. Check the Enable Custom Popup Modal checkbox.

3. Set the Title Template to:

   GeoGLOWS Forecast — ${feature.comid}


   The ${feature.comid} token is replaced at runtime with the comid of whichever river segment the user clicked.

4. Leave the Default Position at the default (60 × 60%, centered) or drag the canvas rectangle to reposition and resize the modal.

Note

Enabling the custom popup modal does not turn off the default attribute table popup. When a user clicks a feature, both popups appear — the small table popup anchored to the click point, and the floating modal you are about to configure.

See Custom Modal Popup Tab for the full reference on the Custom Modal Popup tab.

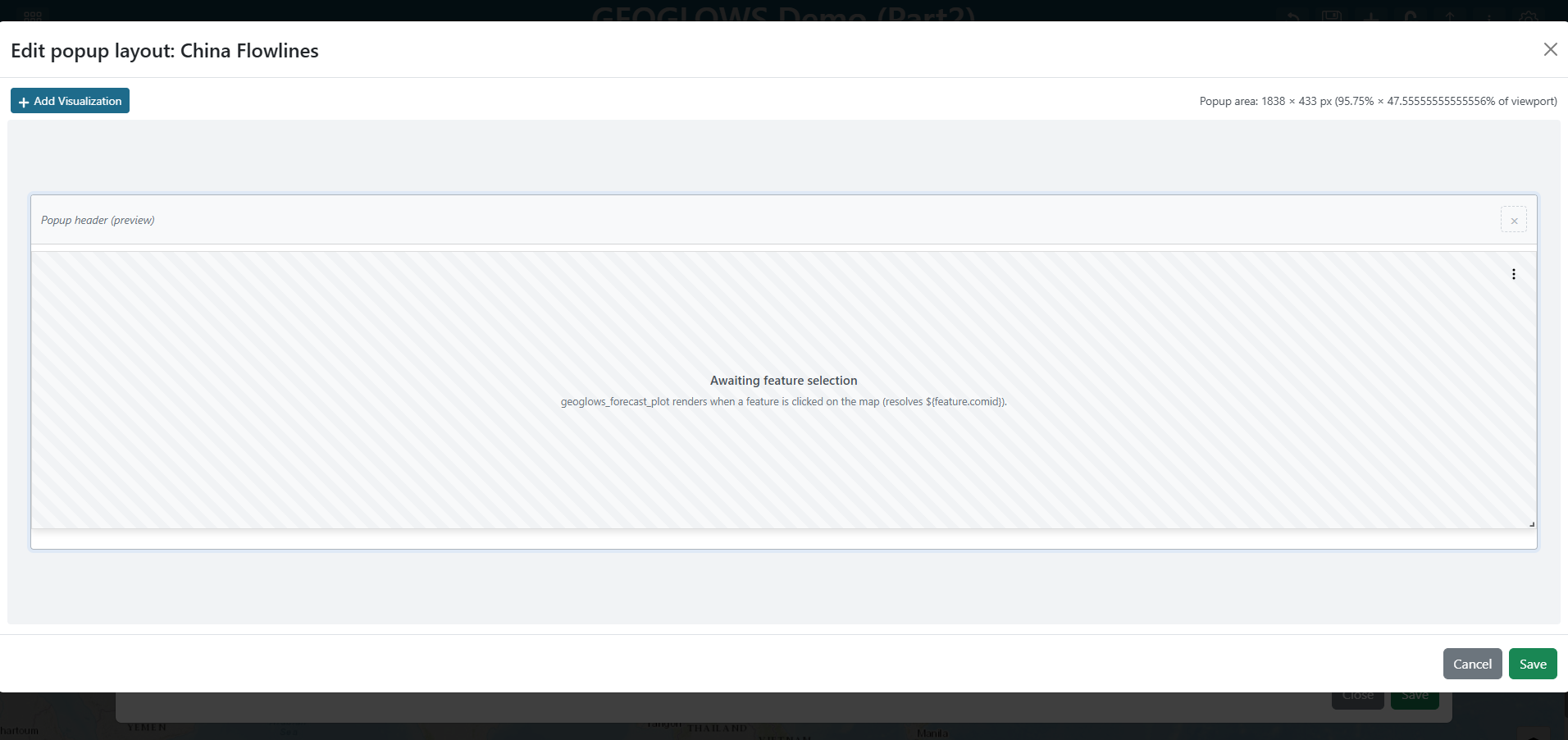

Step 6 — Add the forecast plot to the popup layout

Click Edit popup layout. A mini-dashboard editor opens — this is the content that appears inside the modal when the user clicks a river.

1. Click + (Add Visualization) in the mini-dashboard toolbar.

2. Find the new grid item, click its three-dot menu, and click Edit.

3. Set the Visualization Type to GeoGLOWS Forecast Plot (under the Tutorials group).

4. Set the plot’s properties:

   • River ID: ${feature.comid}

Note

Inside the popup layout, use ${feature.<key>} to reference the clicked feature’s attributes. This is different from the ${river_id} variable input substitution used on the main dashboard in GEOGLOWS Demo (Part 2). ${feature.comid} resolves to the comid of whichever river segment was clicked, scoped only to the popup — it does not write to or read from any dashboard variable input.

5. Click Save on the visualization editor.

6. Resize the plot grid item to fill the popup area.

7. Click Save to close the popup layout editor.

Step 7 — Save the layer and map

1. Click Create at the bottom of the layer editor.

2. Click Save at the bottom of the map editor.

Step 8 — Save the dashboard

Click the dashboard Save (disk) icon in the toolbar to persist your changes.

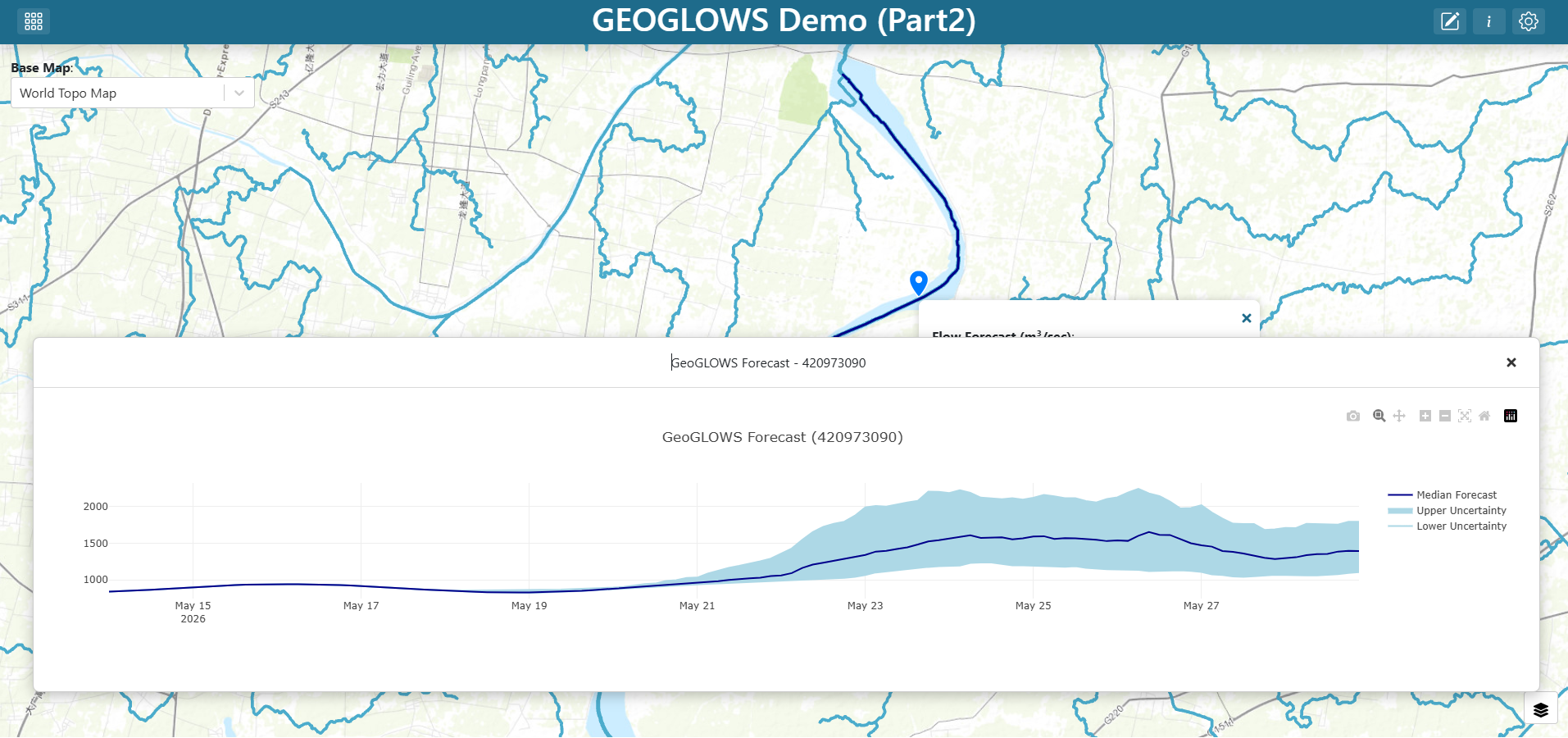

Try it out

Exit edit mode and zoom in on the map past zoom 12 until the flowlines render. Click any river segment in China — a floating popup modal should appear over the map showing the GeoGLOWS forecast for that segment’s comid, with the title GeoGLOWS Forecast — <comid>.

Close the modal with the × button or by pressing Esc, then click a different segment to confirm the title and chart update for the new feature.

Next steps

• Add more visualizations to the popup layout — for example, a text panel with ${feature.streamorde} or an image lookup driven by the clicked feature’s attributes. Every tile inside the popup can reference the active feature’s attributes via ${feature.<key>}.

• Adjust the modal’s Default Position (Left / Top / Width / Height percentages) to better suit your screen size and layout.

• See Custom Modal Popup Tab for the full reference on the Custom Modal Popup tab, including multi-feature carousel behavior when a click hits multiple features at once.
