Style Tab

The style tab lets you apply custom styles to map layers. Custom styling is available for GeoJSON, ESRI Feature Service, and PMTiles Vector layers. Two types of styling are supported:

MapLibre Styling: Follows the MapLibre Style Spec and uses the ol-mapbox-style applyStyle function. Refer to these resources to ensure your layers render correctly.

Rule-Based Styling: A simplified option that lets you create rules based on attribute values. You can combine rules and default styles for complex effects. Rule-based styling can be configured through a graphical interface, making it easier than writing custom JSON. For example, you can set a rule so that if the “population” attribute is greater than 1000, the feature is styled with a red fill color.

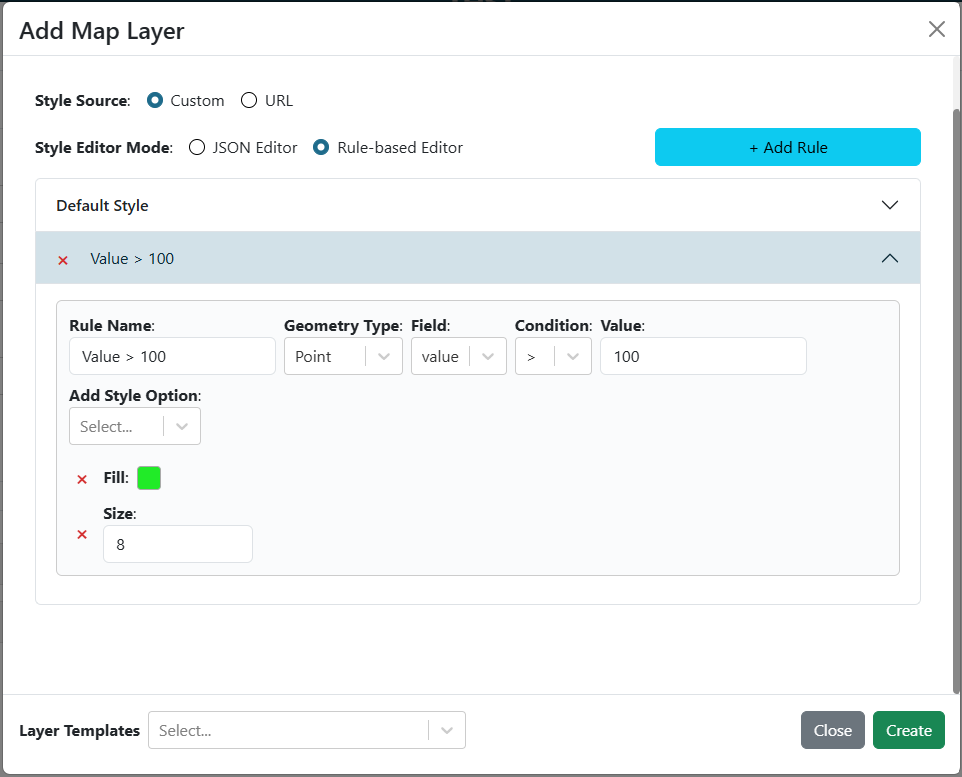

Example of rule-based styling using a simple interface to create rules based on attribute values.

Rule-Based Styling

Rule-based styling lets you define a set of rules that determine how each map feature is drawn. Rules are evaluated in order and the first matching rule wins. Features that match no rule fall back to the Default style.

The graphical rule editor is organized into two sections for each rule:

• When — one or more conditions that must all be true for the rule to apply.

• Then apply style — the visual style to use when the rule matches.

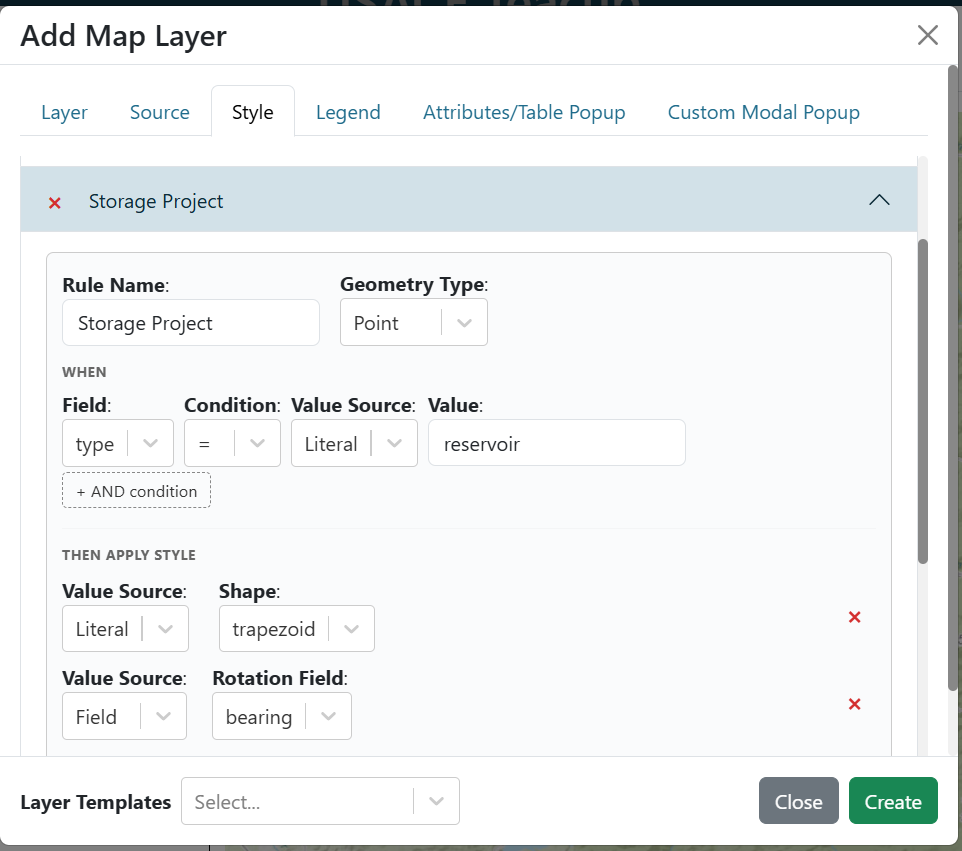

Rule editor showing the WHEN / THEN layout for a single rule.

Rule Conditions

Each rule has at least one condition row. A condition row has three parts:

1. Field — the GeoJSON feature property to inspect (e.g. population).

2. Operator — how to compare the field value.

3. Value — the threshold or target to compare against (hidden for isNull / isNotNull).

The following operators are available:

Operator	Description
=	Field equals value (exact match, case-sensitive for strings).
!=	Field does not equal value.
<	Field is less than value (numeric comparison).
<=	Field is less than or equal to value.
>	Field is greater than value.
>=	Field is greater than or equal to value.
isNull	Field is absent, null, or empty. No value input is shown.
isNotNull	Field is present and non-empty. No value input is shown.

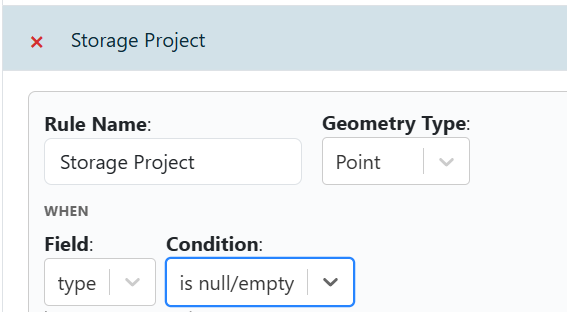

Condition row with isNull selected — the value input is hidden.

Compound AND Conditions

A single rule can require multiple conditions to all be true before it fires. Click the + AND condition button below the condition row to add an extra condition. All conditions in the list must match for the rule to apply (logical AND).

You can add as many condition rows as needed and remove any individual row with its remove button.

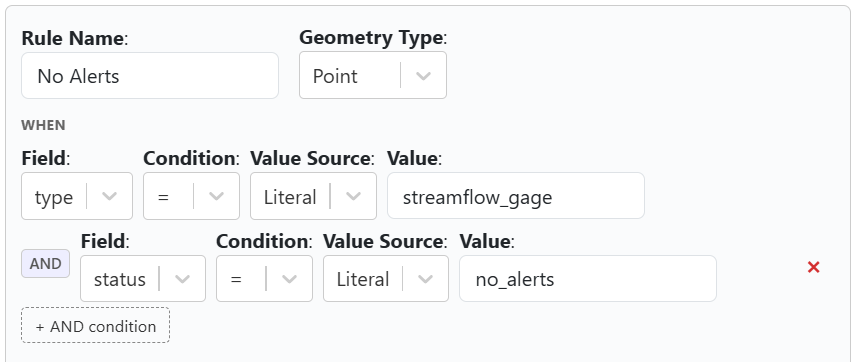

A rule with two AND conditions that must both be true for the rule to apply.

Field-to-Field Comparison

By default the Value in a condition row is a fixed literal (e.g. 1000). Each condition row also has a Value Source toggle that lets you compare a feature property against another feature property instead of a literal:

• Literal (default) — compare against a typed constant.

• Field — compare against the value of a different GeoJSON property on the same feature.

For example, setting Field = stage, Operator = >, Value Source = Field, Value = bankfull will fire the rule on any feature where stage exceeds bankfull.

Style Properties

When a rule matches, the Then apply style section controls how the feature is drawn. The available style properties depend on the geometry type selected for the rule (Point, Line, or Polygon).

Point styles

Property	Description
Shape	The point marker shape. See Point Shapes below.
Fill	Fill color (hex string, e.g. #FF0000).
Stroke	Stroke (outline) color.
Stroke Width	Width of the stroke in pixels.
Size	Overall size of the marker in pixels.
Rotation	Rotation of the marker in degrees (clockwise from north). Accepts a literal value or a per-feature field reference (e.g. bearing).

Line styles

Property	Description
Stroke	Line color.
Stroke Width	Line width in pixels.

Polygon styles

Property	Description
Fill	Fill color.
Stroke	Outline color.
Stroke Width	Outline width in pixels.

Point Shapes

The following shapes are available for point features:

Shape	Description
Circle	Filled circle (default).
Square	Regular four-sided polygon with flat sides.
Rectangle	Wider rectangle marker.
Triangle	Equilateral triangle pointing upward.
Trapezoid	Canvas-drawn trapezoid shape.
Star	Five-pointed star.
Diamond	Canvas-drawn diamond (rotated square) shape.
Cross	Plus-sign cross.
X	Diagonal cross (×).
Icon	Custom image icon. Specify a URL in the Icon URL field.

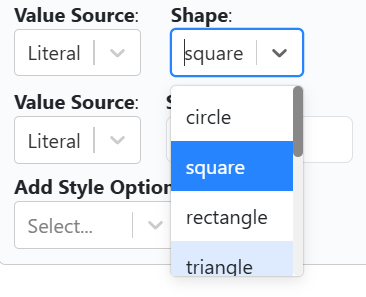

Shape dropdown showing all available point marker shapes.

Per-Feature Property References (Literal | Field Toggle)

Every style property row in the Then apply style section has a Value Source toggle with two modes:

• Literal (default) — all features matching the rule share the same fixed style value.

• Field — the style value is read from a GeoJSON property on each individual feature.

Switching to Field reveals a field selector dropdown. Select the property whose value should drive the style. For example, setting Rotation’s source to Field and choosing bearing orients each point to its recorded heading.

Switching back to Literal clears the field reference and restores the fixed value.

Style property row with the Field source toggle active — the value is read from a per-feature GeoJSON property.

Rule-Based Style JSON Reference

Rules are stored as JSON. Below is a complete example showing the full schema, including compound conditions and property references:

{
    "default": {
        "point": {
            "shape": "circle",
            "fill": "#AAAAAA",
            "stroke": "#FFFFFF",
            "strokeWidth": "1",
            "size": "8"
        }
    },
    "rules": [
        {
            "name": "High flow",
            "geometry": "point",
            "conditions": [
                {
                    "conditionField": "stage",
                    "conditionType": ">",
                    "conditionValue": "bankfull",
                    "valueIsField": true
                },
                {
                    "conditionField": "data_quality",
                    "conditionType": "isNotNull"
                }
            ],
            "style": {
                "shape": "circle",
                "fill": "#FF0000",
                "stroke": "#000000",
                "strokeWidth": "2",
                "size": "12",
                "rotation": "0",
                "propertyRefs": {
                    "rotation": "bearing"
                }
            }
        },
        {
            "name": "Missing data",
            "geometry": "point",
            "conditionField": "stage",
            "conditionType": "isNull",
            "style": {
                "shape": "x",
                "fill": "#888888",
                "stroke": "#444444",
                "strokeWidth": "1",
                "size": "8"
            }
        }
    ]
}

Top-level keys

• default — fallback style applied to features that match no rule. Contains geometry-type sub-keys (point, line, polygon).

• rules — ordered array of rule objects. First matching rule wins.

Rule object fields

Field	Description
name	Optional display name for the rule. Auto-generated from the condition if omitted.
geometry	Geometry type this rule applies to: "point", "line", or "polygon".
conditionField	(Legacy single-condition) GeoJSON property name to test.
conditionType	(Legacy single-condition) Operator string (=, !=, <, <=, >, >=, isNull, isNotNull).
conditionValue	(Legacy single-condition) Value to compare against. Omit for isNull / isNotNull.
valueIsField	(Legacy single-condition) Set true to compare conditionField against the feature property named by conditionValue instead of a literal.
conditions	Array of condition objects (see below). When present, all entries must match (AND logic). Takes precedence over the legacy top-level condition fields.
style	Style object (see Style object fields below).

Condition object fields (entries in conditions[])

Field	Description
conditionField	GeoJSON property name to test.
conditionType	Operator string.
conditionValue	Value or field name to compare against. Omit for isNull / isNotNull.
valueIsField	Set true to treat conditionValue as the name of another feature property.

Style object fields

Field	Description
shape	Point shape name (see Point Shapes). Point layers only.
fill	Fill color (hex string). Points and polygons.
stroke	Stroke/outline color (hex string).
strokeWidth	Stroke width in pixels (string-encoded number).
size	Marker size in pixels (string-encoded number). Points only.
rotation	Rotation in degrees, clockwise from north (string-encoded number). Points only. Default "0".
iconUrl	Image URL for the "icon" shape. Points only.
propertyRefs	Object mapping style key names to GeoJSON property names. At render time each mapped style value is replaced with the corresponding per-feature property value. For example, {"rotation": "bearing"} orients every point to its bearing property.

Example

GeoJSON:

{
    "type": "FeatureCollection",
    "crs": {
        "properties": {
            "name": "EPSG:3857"
        }
    },
    "features": [
        {
            "type": "Feature",
            "geometry": {
                "type": "Point",
                "coordinates": [
                    0,
                    0
                ]
            }
        }
    ]
}

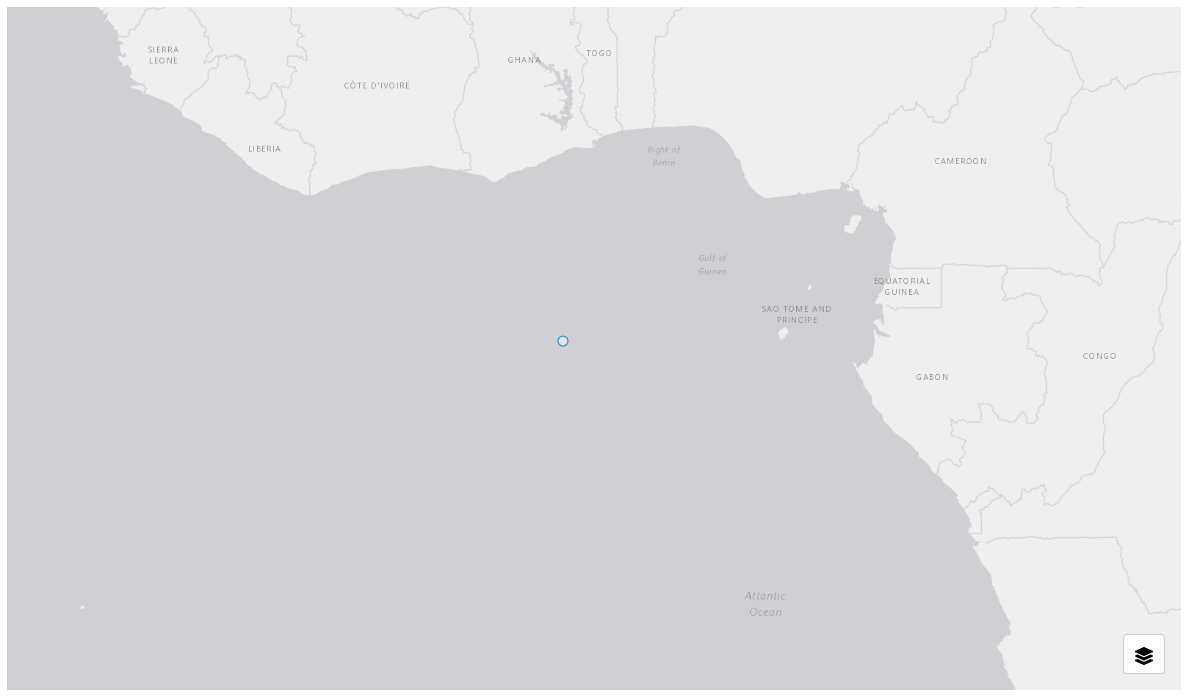

GeoJSON layer without custom styling

Rule-Based Style JSON Example:

{
    "default": {
        "point": {
            "stroke": "#FFFFFF",
            "size": "8",
            "fill": "#FF0000",
            "strokeWidth": "2"
        }
    }
}

MapLibre Style JSON Example:

{
    "version": 8,
    "sources": {
        "my-geojson-source": {
            "type": "geojson"
        }
    },
    "layers": [
        {
            "id": "points-layer",
            "type": "circle",
            "source": "my-geojson-source",
            "filter": [
                "==",
                "$type",
                "Point"
            ],
            "paint": {
                "circle-radius": 8,
                "circle-color": "#FF0000",
                "circle-stroke-width": 2,
                "circle-stroke-color": "#FFFFFF"
            }
        }
    ]
}

GeoJSON layer with custom styling

Warning

For map libre styling to work, the “sources” key in the JSON object must match the layer name from the layer tab. For example, if your layer is named “My Beautiful Layer”, the styling JSON should look like:

{
    "version": 8,
    "name": ...,
    "sprite": ...,
    "glyphs": ...,
    "sources": {
        "My Beautiful Layer": {...}
    },
    "layers": [...]
}
